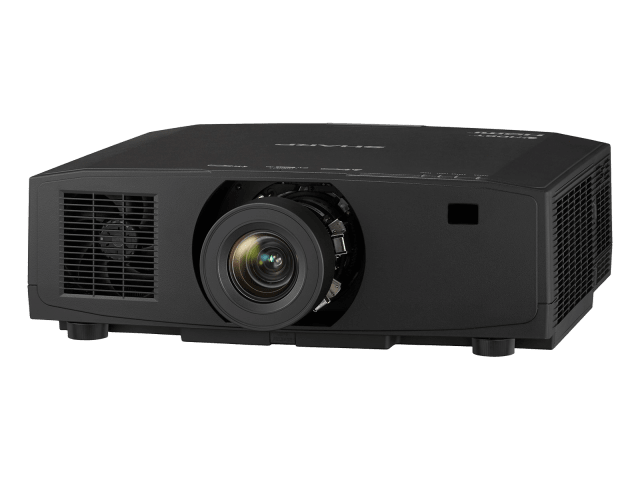

Professional Value 8000 Lumen LCD Laser Installation Projector
A highly economical projection solution, the V801U offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.
Cost-effective LCD-based laser projector with interchangeable lenses
3LCD technology generates brilliantly vivid colour, which, at 8000 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.
The V801U offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same lenses as the A/PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the V801U offers outstanding value for higher education, corporate, leisure and hospitality sectors.
Benefits
- No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
- Get Great Performance – while not compromising on quality and ease of use.
- Low Noise Level – with 31dB, the silent technology will not disturb your meeting.
- Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.
- Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.
- Projection Technology
- 3LCD Technology
- Native Resolution
- 1920x1200
- Aspect Ratio
- 16:10
- Contrast Ratio (typ.)
- 3,000,000:1
- Brightness (Lumen)
- 8000 Lm Normal / 8300 Lm Center / 7200 Lm Silent Mode; compliant with ISO21118-2012
- Light Source
- Laser
- Light Source Life
- 20,000 hrs
- Lens
- 5 motorized lens options
- Lens Adjustment
- Motorized
- Keystone correction
- +/- 30° manual horizontal / +/- 30° manual vertical
- Lens shift
- H:±20, V:+10,-50
- Projection Factor
- depending on lens selection (std. option XP-41ZL at 1.3-3.02:1)
- Projection Distance (m)
- 0.7 – 50.9m
- Screen Size (diagonal)
- Max. 1,270cm, Min. 101.6cm
- Zoom
- Motorized and manual (depending on lens)
- Focus Adjustment
- Motorized and manual (depending on lens)
- Frequency
- Digital Frequency: Horizontal: 15/24 - 153 kHz; Vertical: 24-120 Hz
- Digital Input
- 1 x HDBaseT; 2 x HDMI™ supporting HDCP
- Audio Input
- 1 x HDBaseT audio support; 2 x HDMI audio support
- Audio Output
- 1 x 3.5 mm Stereo Mini Jack
- Input Control
- 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
- LAN
- 1 x RJ45
- USB
- 1 x Type A (USB 2.0 high speed)
- Remote Control
- Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power; Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control
- Power Supply
- 100-240 V AC; 50 - 60 Hz
- Power Consumption
- 467.0 Normal / 421.0 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by
- Operating Temperature
- 0ºC to 40ºC
- Operating Humidity
- 20% to 80%
- Storage Temperature
- -10ºC to 50ºC
- Storage Humidity
- 20% to 80%
- Dimensions (W x H x D) [mm]
- 499 x 164 x 407 (without lens and feet)
- Weight [kg]
- 11.2
- Fan Noise [dB (A)]
- 42 / 32 (Normal / Silent)
- Colour Versions
- Black
- Optional Accessories
- 5 optional bayonet lenses; Cable Cover (XP-13CV-W, XP-13CV-B)
- Lenses (Motorized)
- XP-40ZL/NP40ZL (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-A/NP44ML-PA4 (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1)
- Safety and Ergonomics
- RCM, CE, EAC, ErP, RoHS
- Special Characteristics
-
AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Control ID Function; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.2 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; Quick On/Off; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life
- Shipping Content (Accessories)
- Power Cable, Projector, Quick Setup Guide, IR Remote Control
